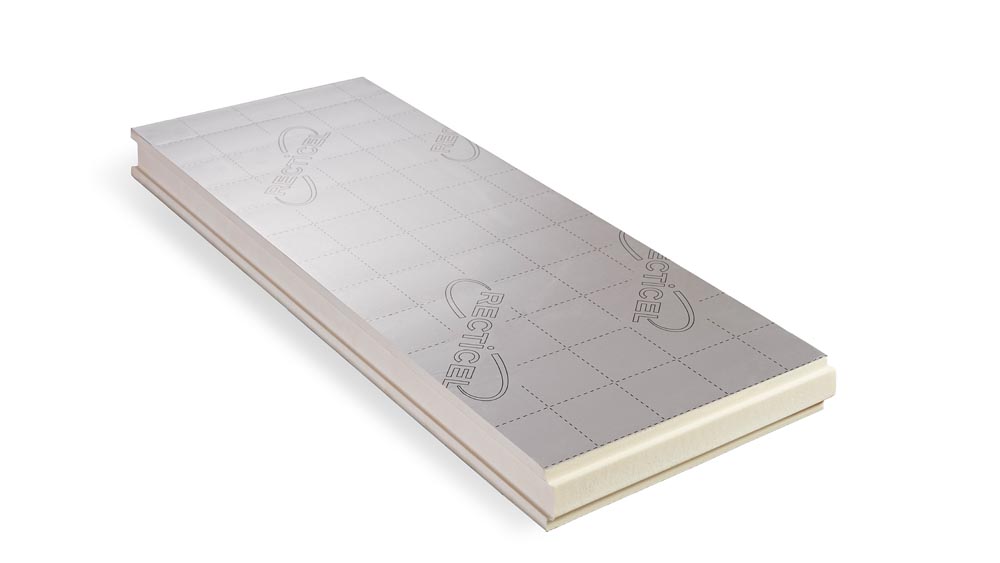

Eurowall + Recticel Insulation double panels

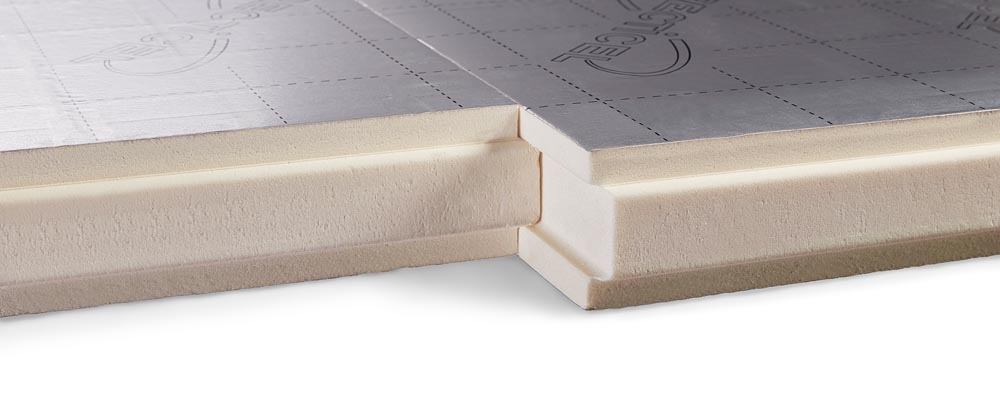

Eurowall + Recticel Insulation tongue and groove joint

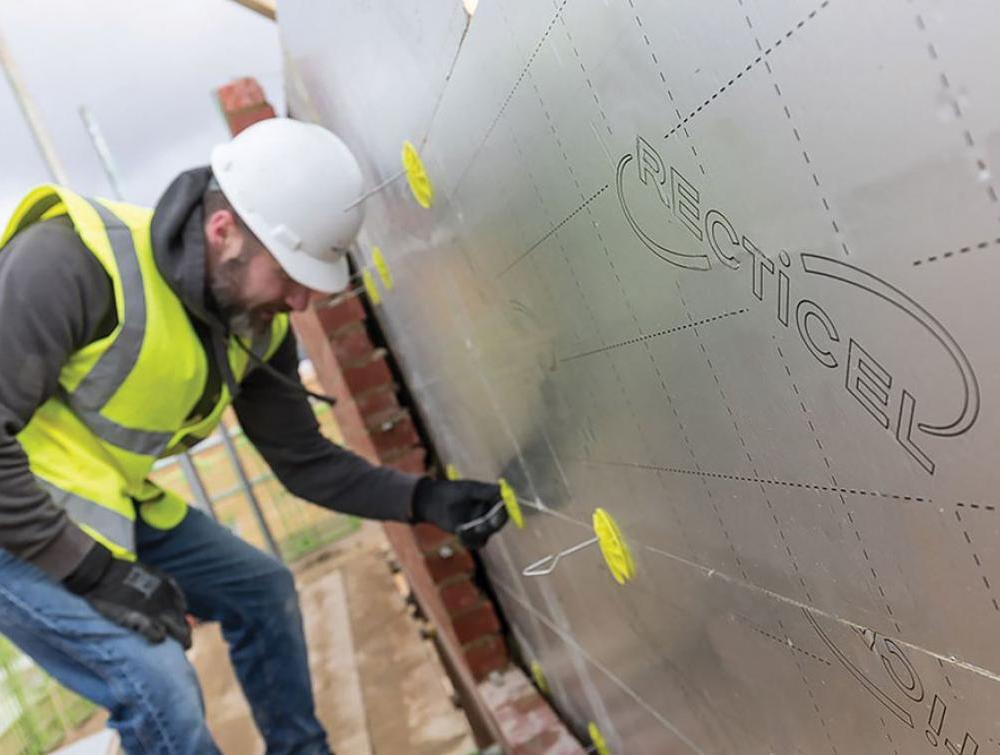

Recticel Insulation Eurowall + installation image wide angle

Eurowall^® +

Name: Eurowall +
Brand: Recticel Insulation

PIR insulation for full fill masonry cavity wall applications.

Eurowall^® + is a premium, full fill insulation board with precision cut tongue and groove joints on all four sides. This ensures that the boards lock tightly together to negate the risk of thermal bridging. This unique joint offers increased protection against wind driven rain as well as improved windtightness. Eurowall^® + is also designed with a 10mm cavity requirement in mind, so that space can be left for conventional bricklaying techniques.

Our Eurowall^® + is CCPI assessed, as noted in the verification marking below:

Eurowall+ CCPI Verification Mark

Key benefits

Thermal performance: λ = 0.022 W/mK
Easy and fast installation
Tongue and groove rebate minimises thermal bridging

Application:
Cavity walls

Read our blog on PSI and Y-value Analysis!

Getting started with Eurowall^® +

Key specifications
Lambda (λ)	0.022 W/mK
Size(s)	1200x460 (max including tongue and groove joint) 1190x450 (installed dimensions) mm
Fire performance	Euroclass F
Edge finishing	Tongue and groove

Technical datasheet Eurowall +

Insulation thickness	Thermal Resistance Value: (m²K/W)
75 mm *	3.40
90 mm	4.05
115 mm	5.20
140 mm	6.35
* Available on demand (subject to minimum order quantity)

How to insulate cavity walls with Eurowall^®+?

90mm EUROWALL + within a 100mm cavity can help achieve a U-value of 0.18 W/m²K, meeting the requirements of Part L1A England 2013 and Part L1A Wales 2014. This means that existing designs can be maintained avoiding increased building footprints or reduced room sizes.

Also manufactured at 75mm to work within 85mm cavities, 115mm for 125mm cavities and 140mm for 150mm cavities, the compact design of EUROWALL + leaves space for conventional bricklaying techniques. With enough room to 'roll' the outer leaf bricks into place, bricklayers’ work takes same time to complete.

Download specification guide for cavity wall application.
