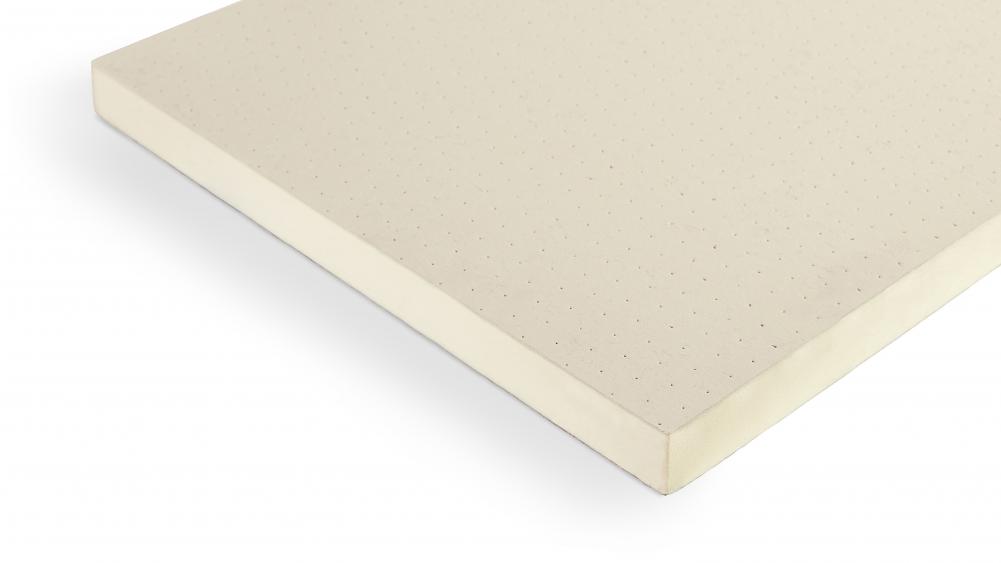

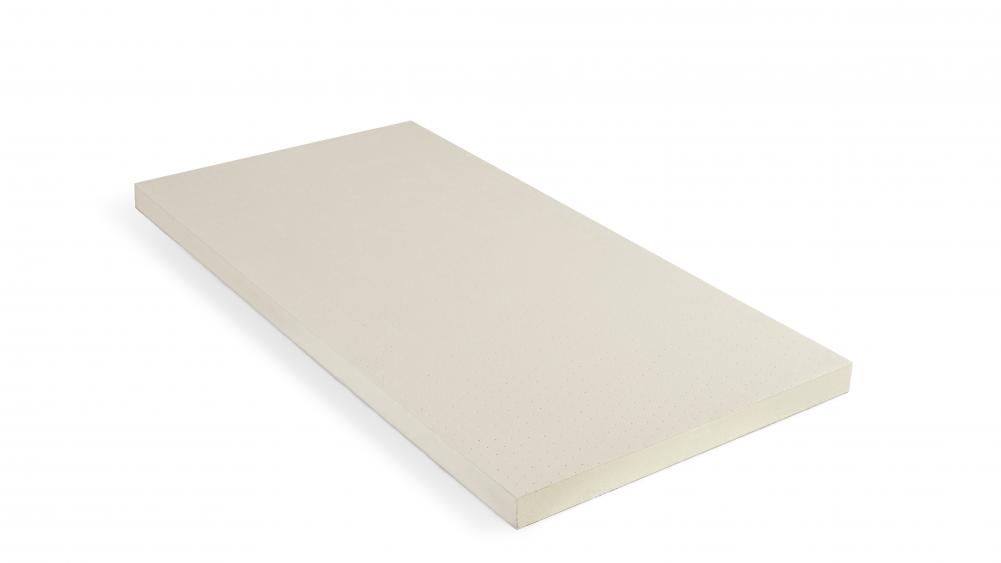

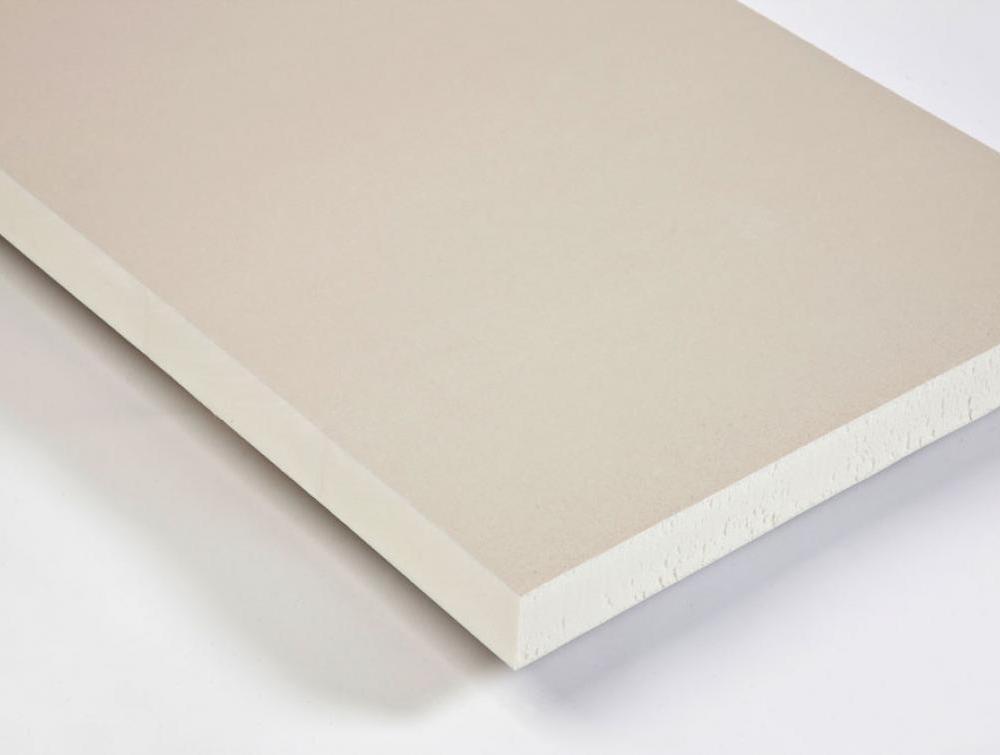

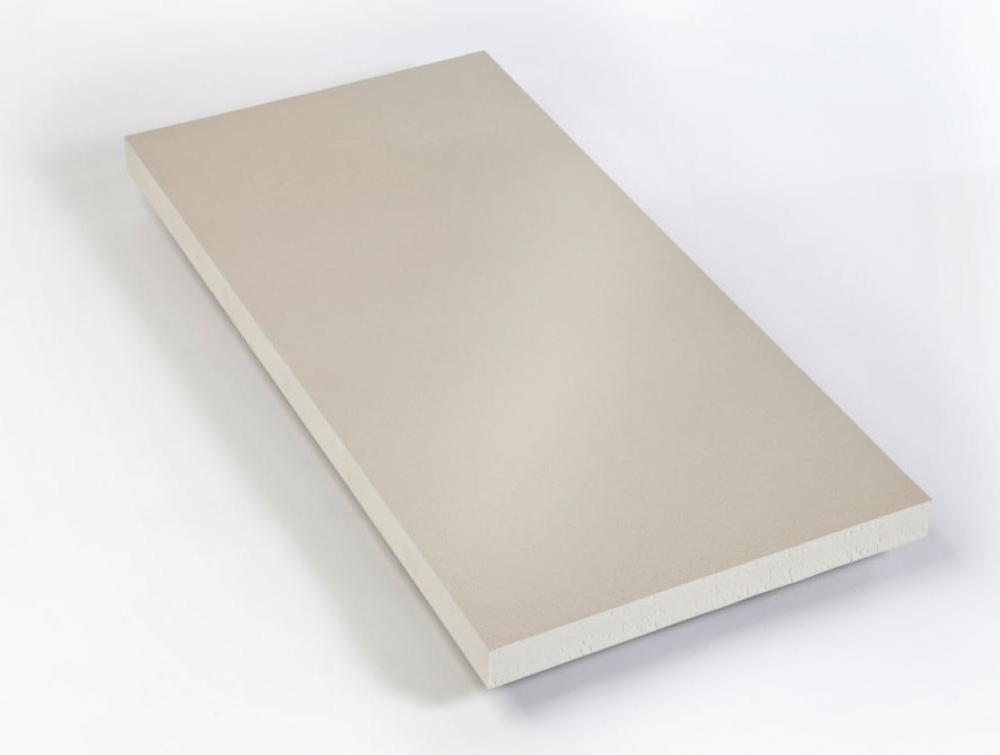

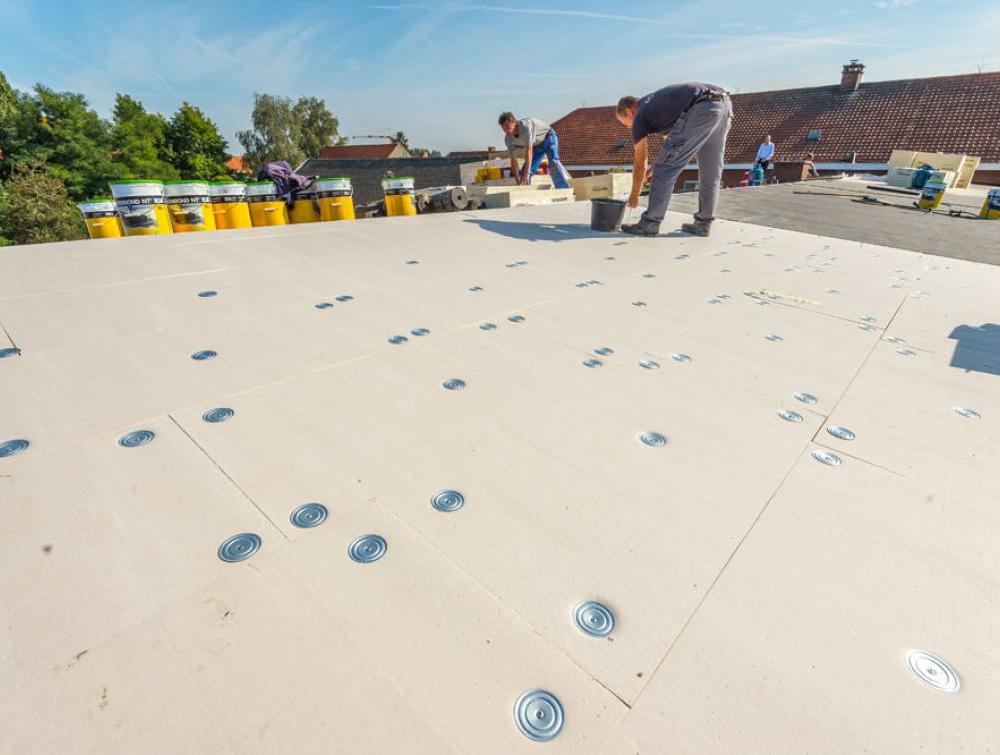

Recticel Insulation Powerdeck F installation image

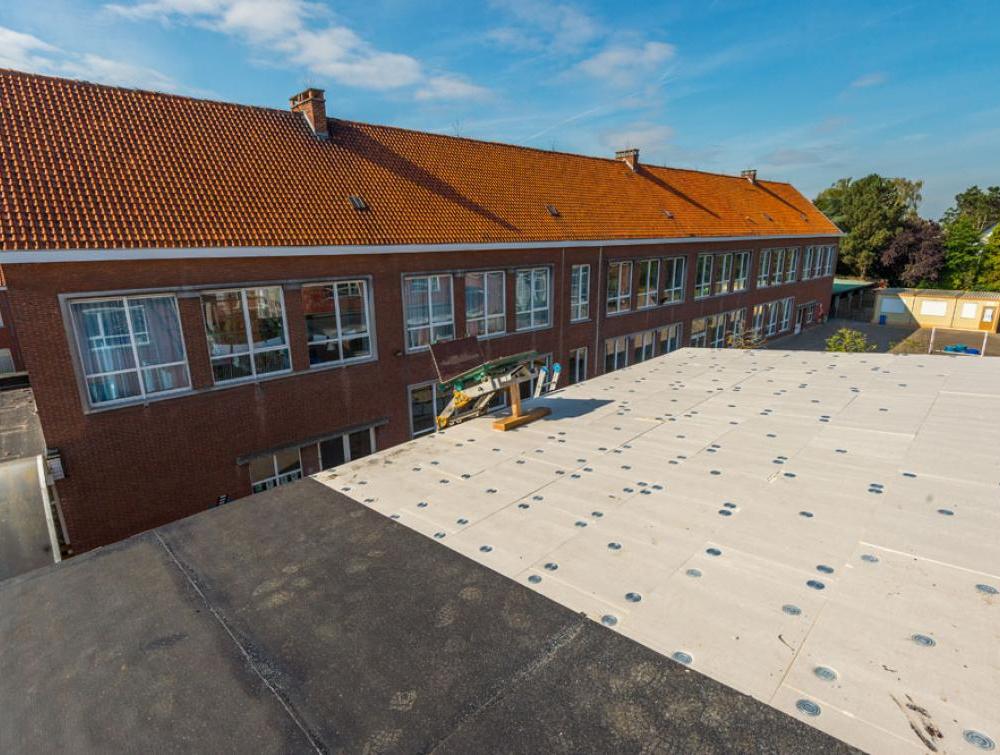

Recticel Insulation Powerdeck F flat roof application image

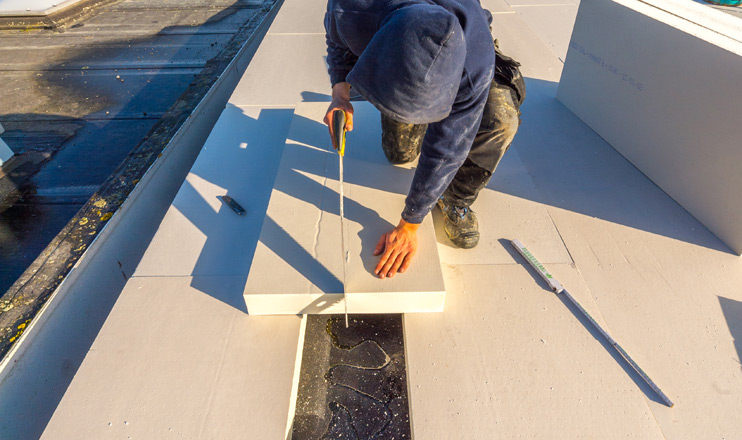

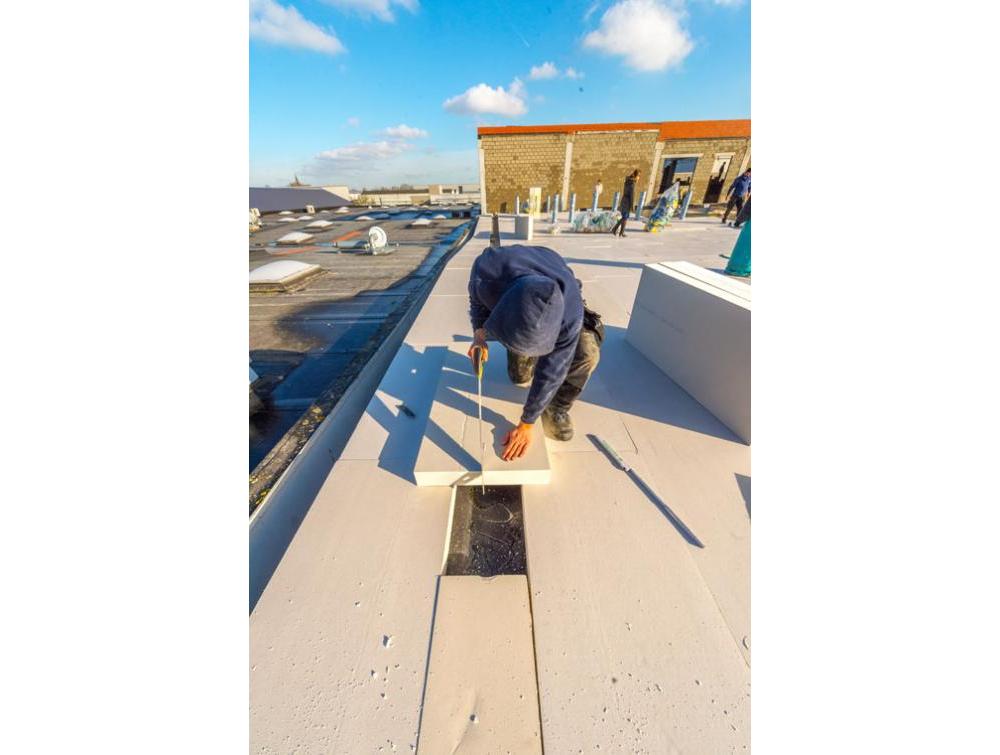

Recticel Insulation Powerdeck F panel being cut installation image

Powerdeck^® F

Name: Powerdeck F
Brand: Recticel Insulation

A flat roof insulation board for use in built-up felt and single ply membrane waterproofing systems.

Powerdeck^® F is compatible with multiple waterproofing systems, benefiting from a compressive strength of >150 kPa and dimensional stability. This ensures the flat surface finish required for performance in new build and refurbishment projects.

Both sides of Powerdeck^® F are faced with a mineral coated glass fleece.

Our Powerdeck^® F is CCPI assessed, as noted in the verification marking below:

Powerdeck F CCPI Verification Marking

Key benefits

Thermal performance: λ = 0.024 - 0.027 W/mK
Compatibility with numerous waterproofing systems
Mineral coated glass fleece on both sides

Application:
Flat roofs

Calculate U-value

Getting started with Powerdeck^® F

Key specifications
Lambda (λ)	0.024-0.027 W/mK
Size(s)	1200x600 mm
Fire performance	Euroclass F
Edge finishing	Straight edges
Compressive strength	150 kPa

Technical datasheet Powerdeck F

Insulation thickness	Thermal Resistance Value: (m²K/W)
30 mm *	1.10
40 mm *	1.45
45 mm	0.00
50 mm	1.85
60 mm *	2.20
70 mm *	2.55
80 mm	3.20
90 mm	3.60
100 mm	4.00
110 mm *	4.40
120 mm	5.00
130 mm	5.40
140 mm	5.80
150 mm	6.25
45 mm *	0.00
* Available on demand (subject to minimum order quantity)
