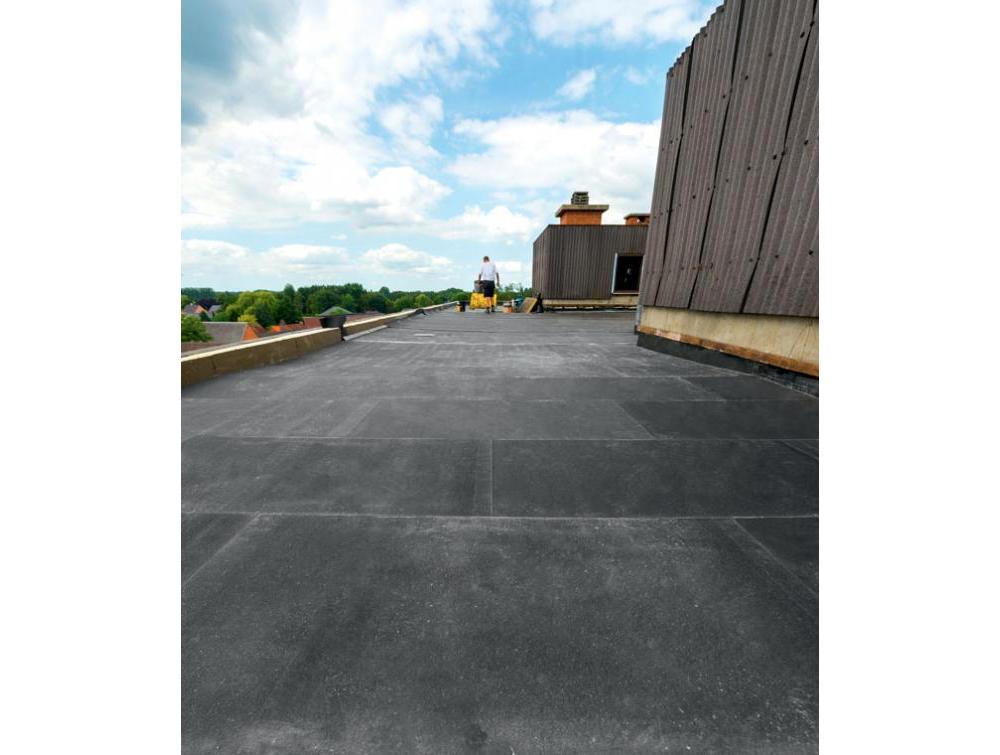

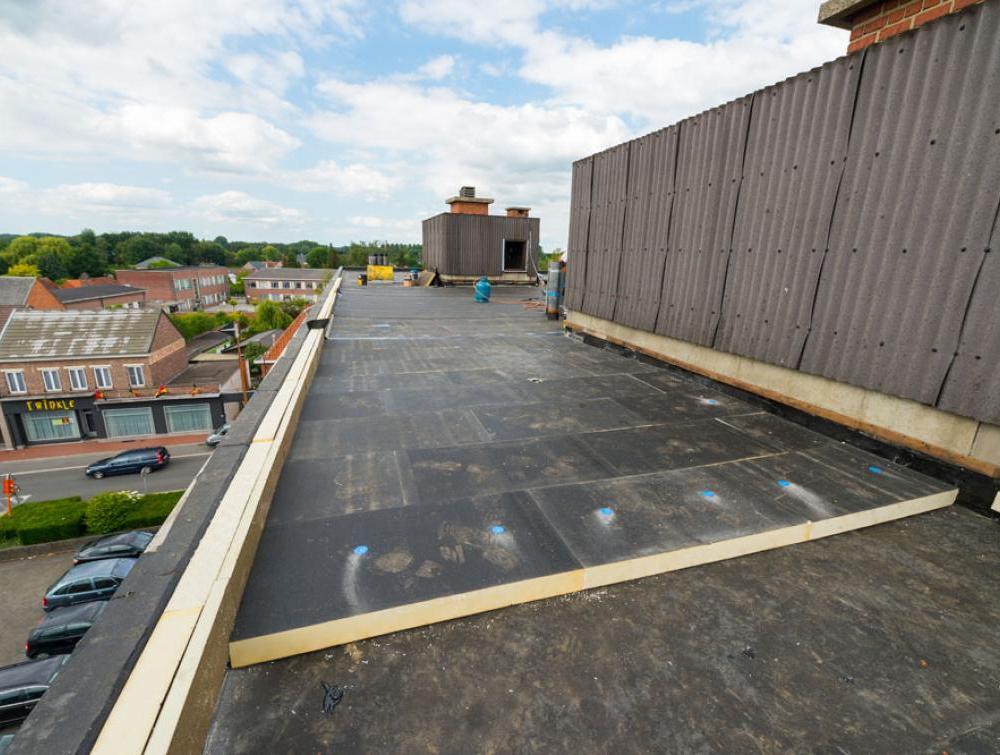

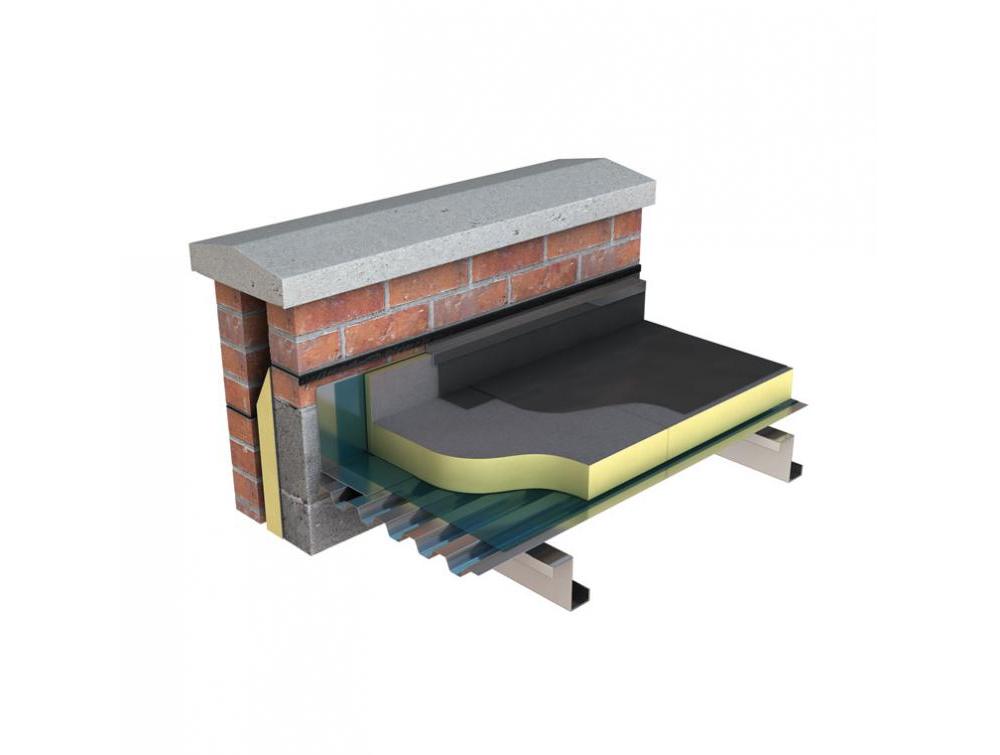

Recticel Insulation Powerdeck U flat roof application image

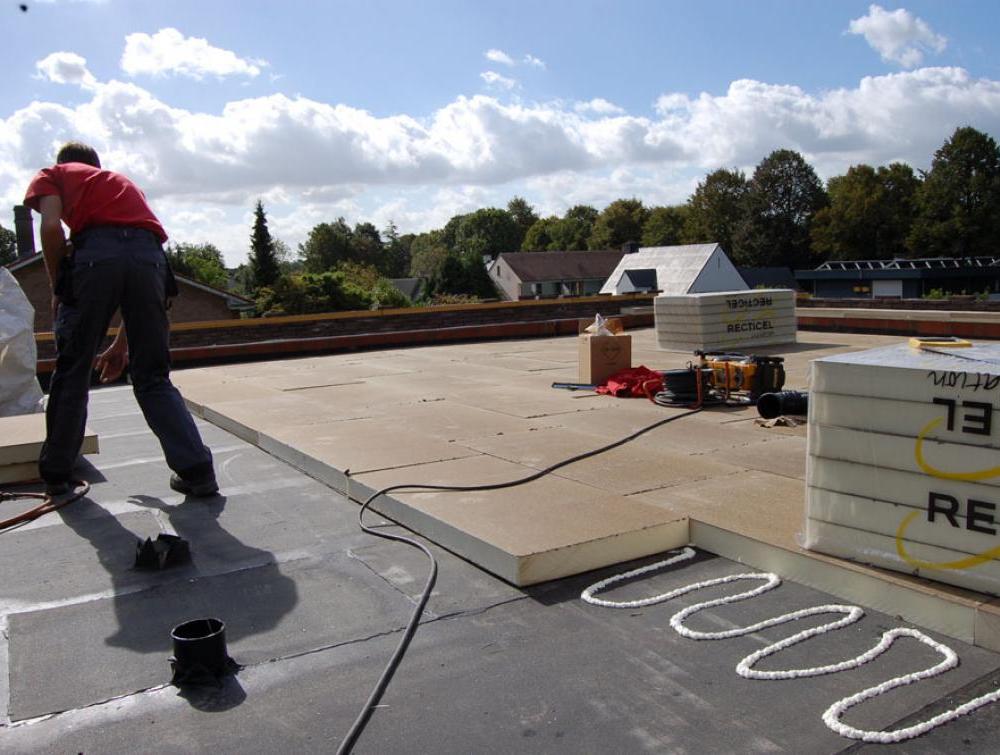

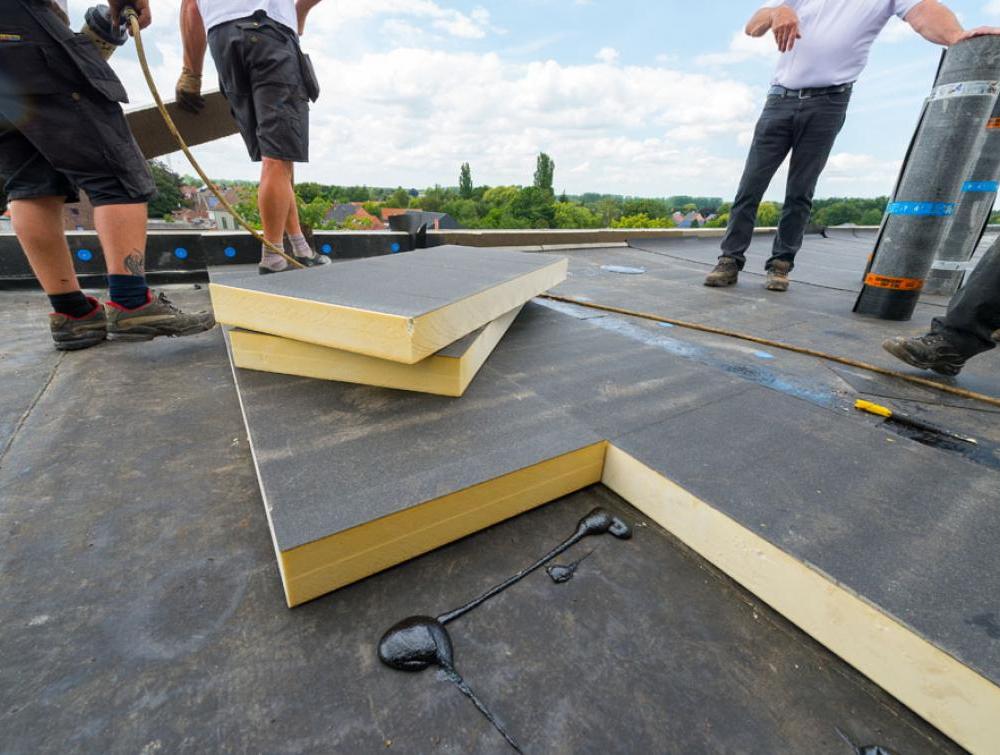

Recticel Insulation Powerdeck U flat roof installation image

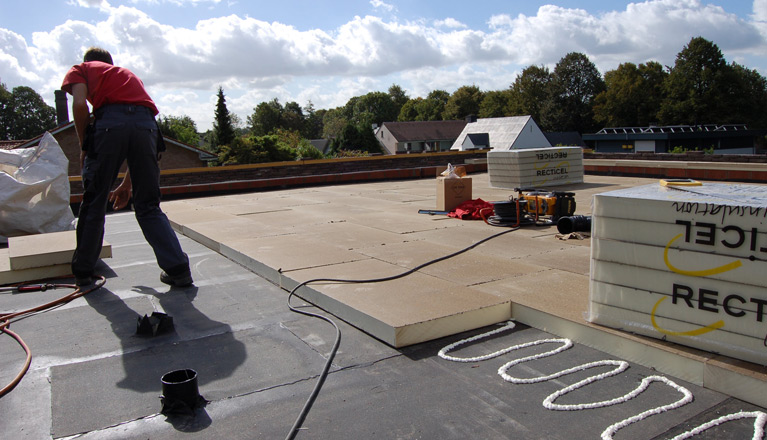

Recticel Insulation Powerdeck U panel installation image

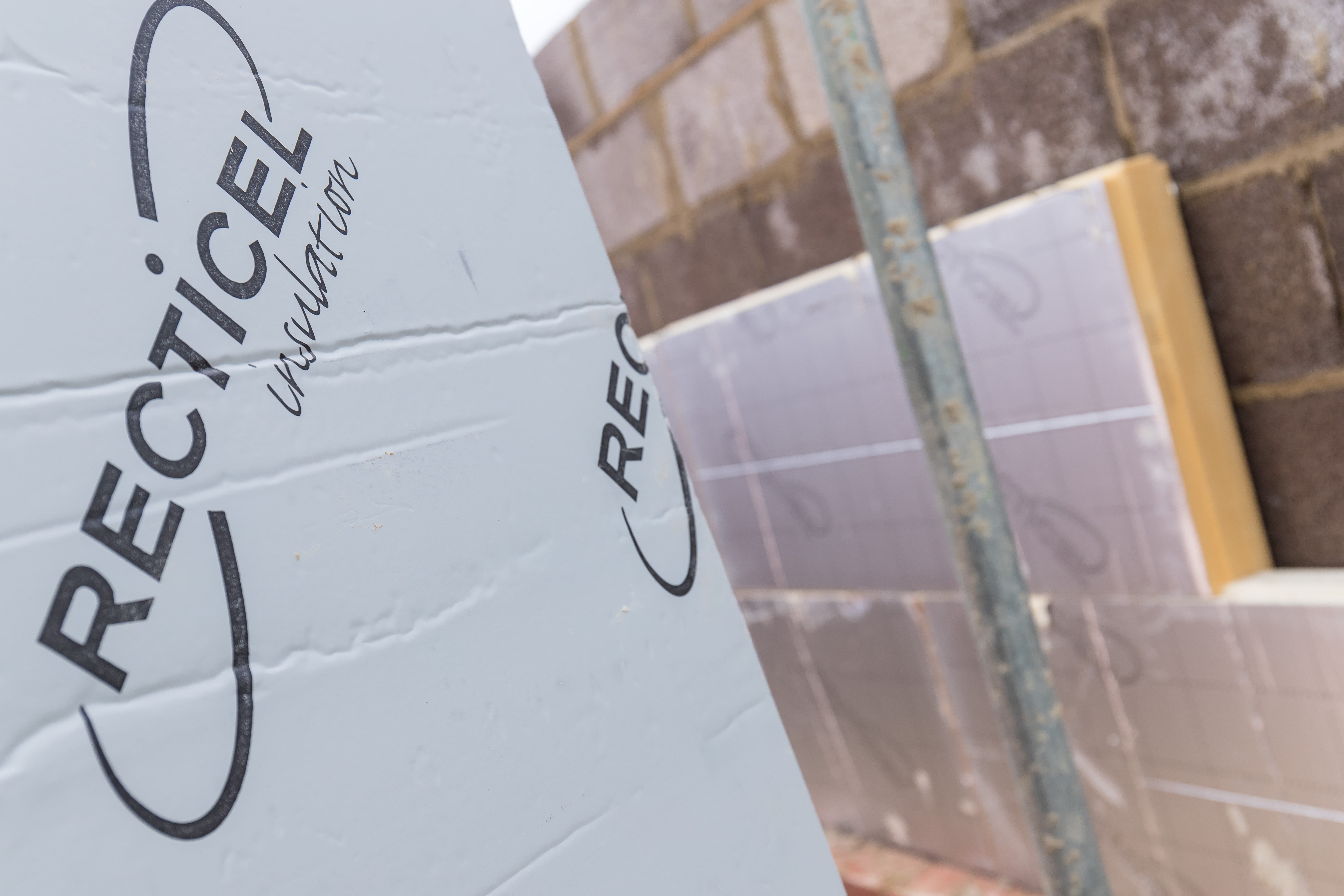

Recticel Insulation Powerdeck U panel corner image

Powerdeck^® U

Name: Powerdeck U
Brand: Recticel Insulation

Flat roof insulation board suitable for torch-on felt.

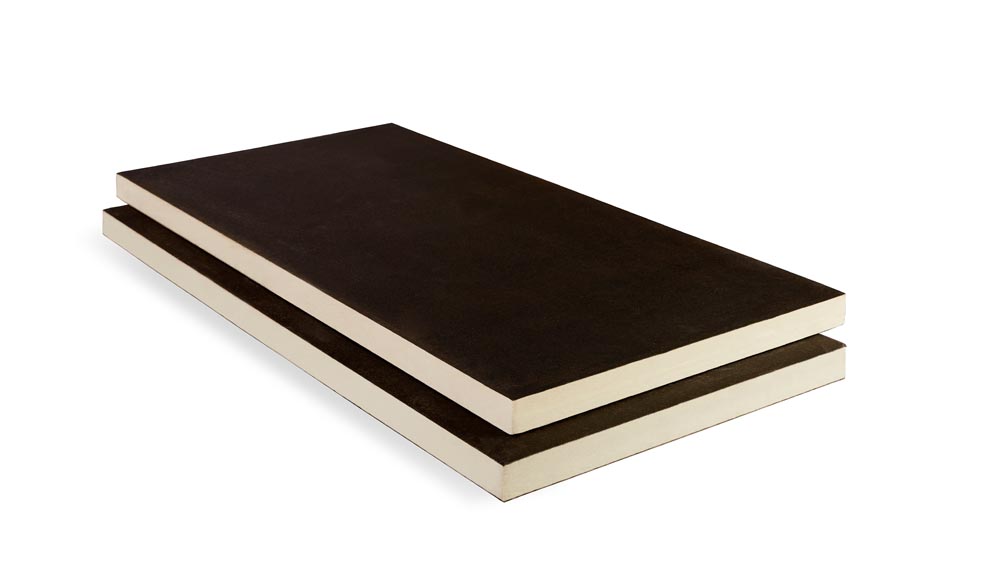

Powerdeck^® U is a rigid PIR insulation board for use in warm flat roofs with bituminous torch-on felt waterproofing systems. Its stability, compressive strength of >150 kPa as noted in our Technical Datasheet and dimensions allows for the flattest finish.

Our Powerdeck^® U is CCPI assessed, as noted in the verification marking below:

Powerdeck U CCPI Verification Marking

Key benefits

Thermal performance: λ = 0.024 - 0.027 W/mK
Bituminous coated glass fleece on both sides
>150 kPa compressive strength

Application:
Flat roofs

Calculate U-value

Getting started with Powerdeck^® U

Key specifications
Lambda (λ)	0.024 W/mK (≥120mm), 0.025 W/mK (80mm – 119mm), 0.027W/mK (≤79mm) W/mK
Size(s)	1200x600 mm
Fire performance	Euroclass F

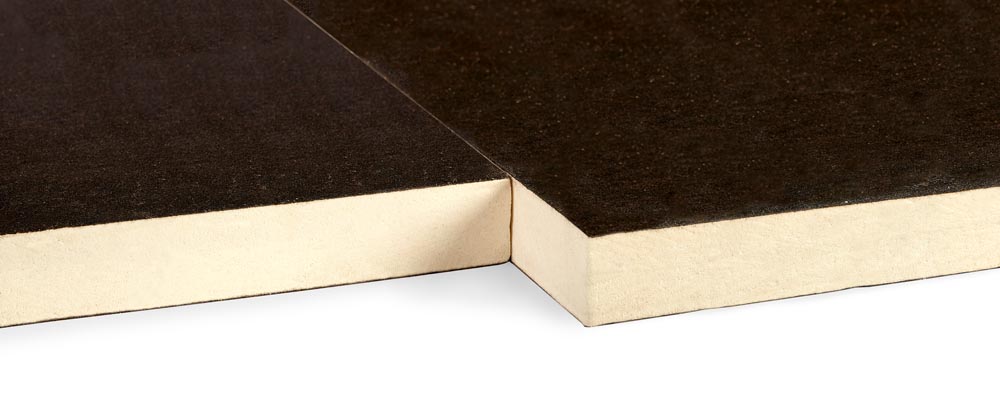

Edge finishing	Straight edge
Compressive strength	≥ 150 kPa

Technical datasheet Powerdeck U

Insulation thickness	Thermal Resistance Value: (m²K/W)
30 mm	1.10
40 mm *	1.45
50 mm	1.85
60 mm *	2.20
70 mm *	2.55
80 mm	3.20
90 mm *	3.60
100 mm	4.00
120 mm	5.00
130 mm	5.40
140 mm	5.80
150 mm	6.25
* Available on demand (subject to minimum order quantity)

How to insulate your flat roof with Powerdeck^® U?

Powerdeck® U is a PIR insulation board for use in warm flat roofs with bituminous torch-on felt waterproofing systems. Its optimum stability, strength and structural integrity, allows the flattest finish. Combined with its precision-cut dimensions your installation is quicker, easier and more cost effective. For full installation details of Powerdeck® U, please refer to our technical literature.

Download specification guide on flat roof application.
